Hemmi Slide Rule Manufacturing Process
The following stills were generated from an 8mm film apparently taken by a Hemmi employee, showing various steps in the slide rule manufacturing process. They were taken from a VHS tape of the movie I received from Hemmi in the early 1990s, and, judging from some of the vehicles not seen in these stills, the original was probably created in the late 1950s.
Movie Title
Bronze Bust of Hemmi Jiro
President Ohkura

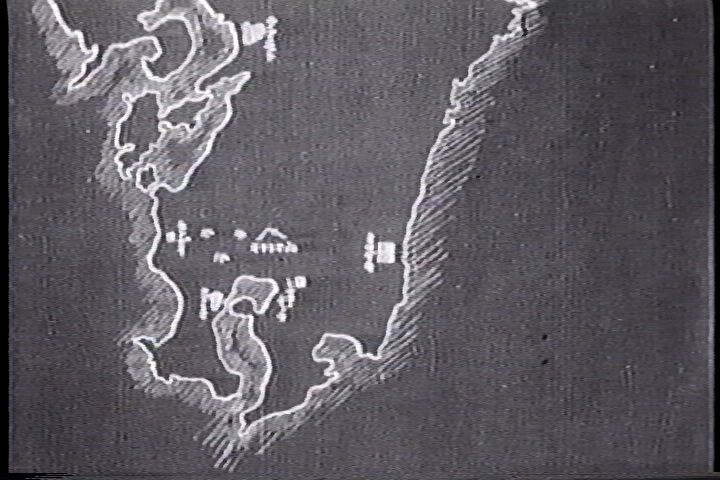

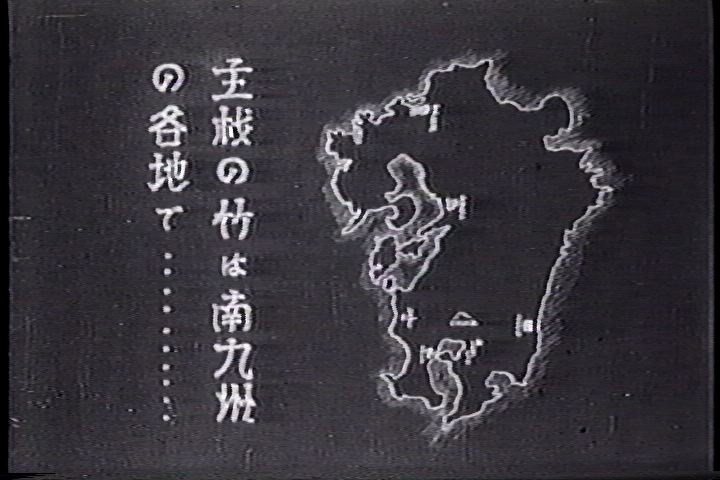

Map of Kyushu showing Kagoshima, the source of bamboo for Hemmi slide rules
Close-up of bamboo source
Bamboo thicket
Measuring bamboo

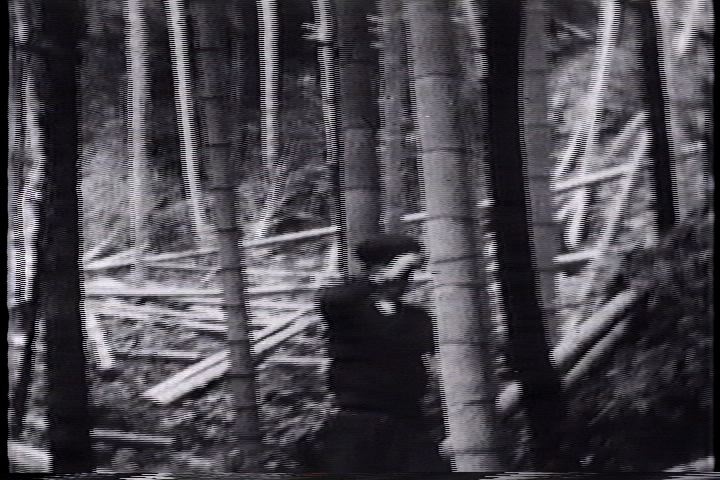

Chopping bamboo

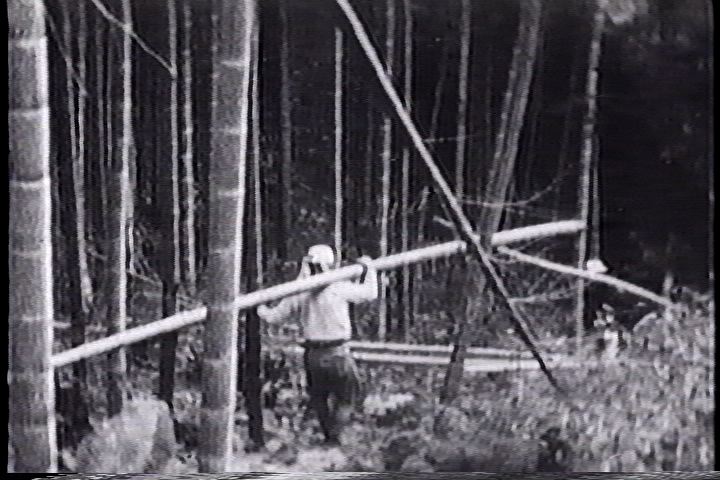

Carrying bamboo

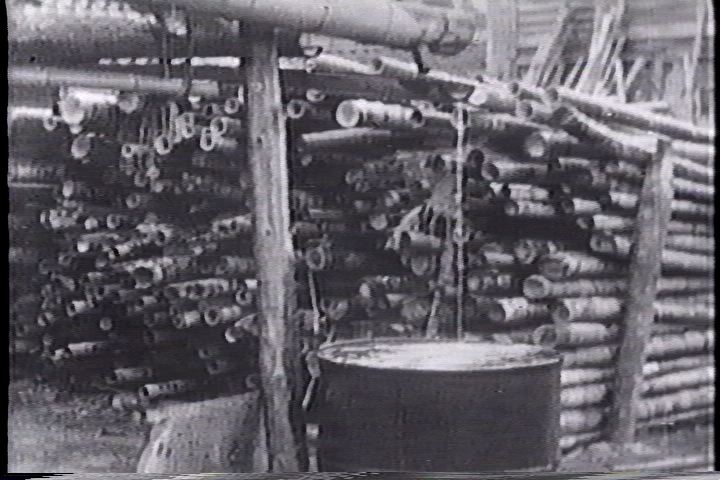

Temporary storage

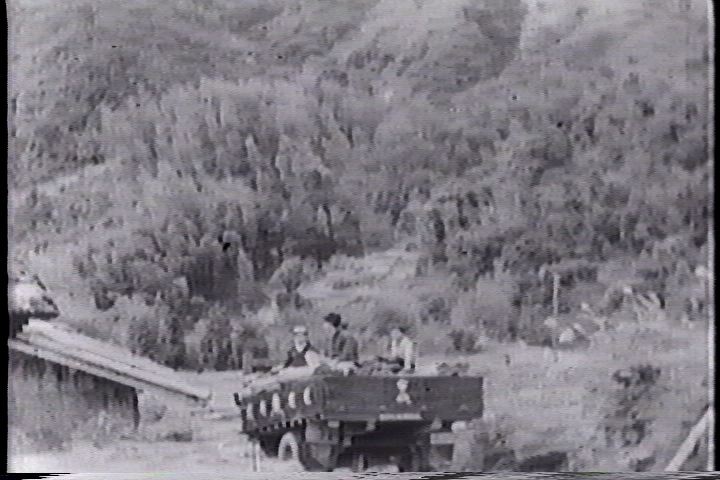

Trucking out of the mountains

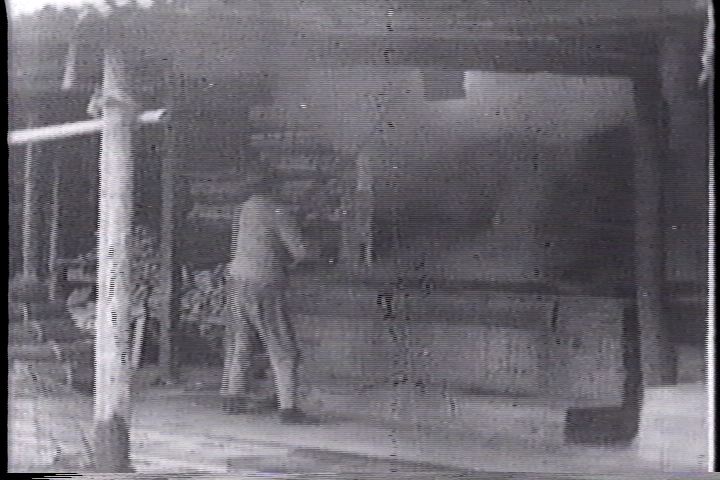

Boiling

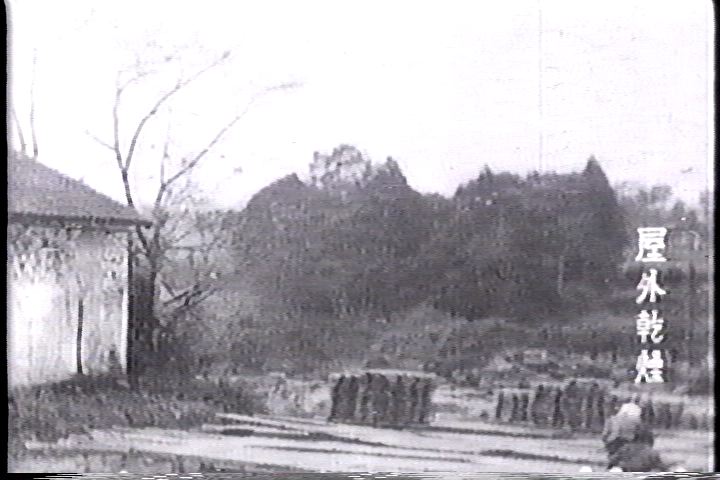

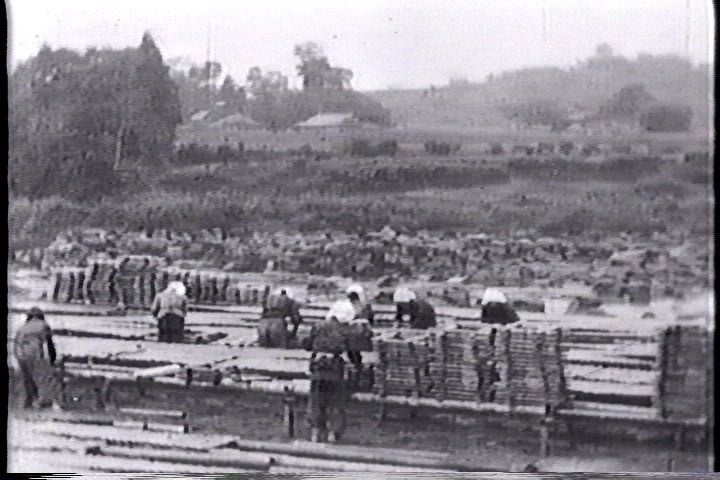

Outdoor drying
Outdoor drying
Route to the plant
Shirako Plant title

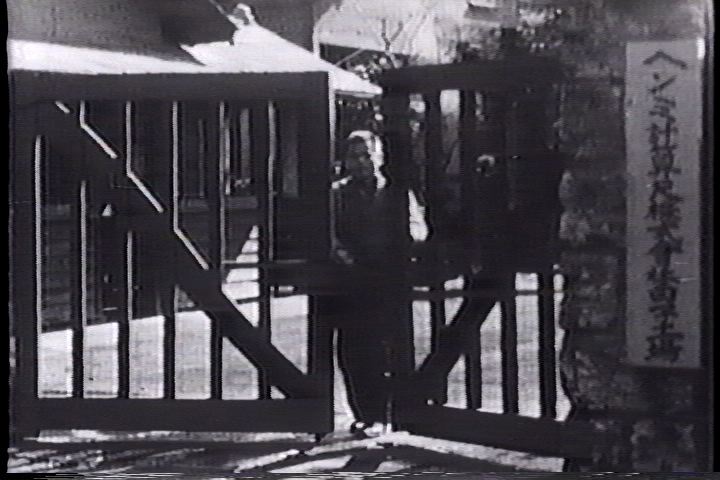

Plant gate
Fire perimeter description

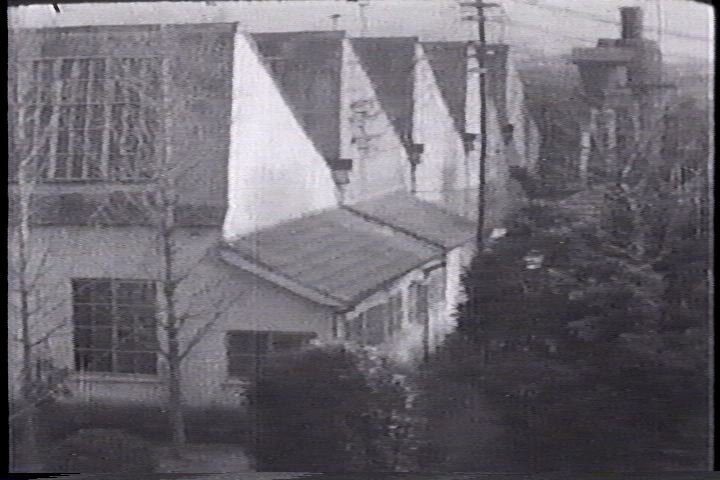

Plant buildings

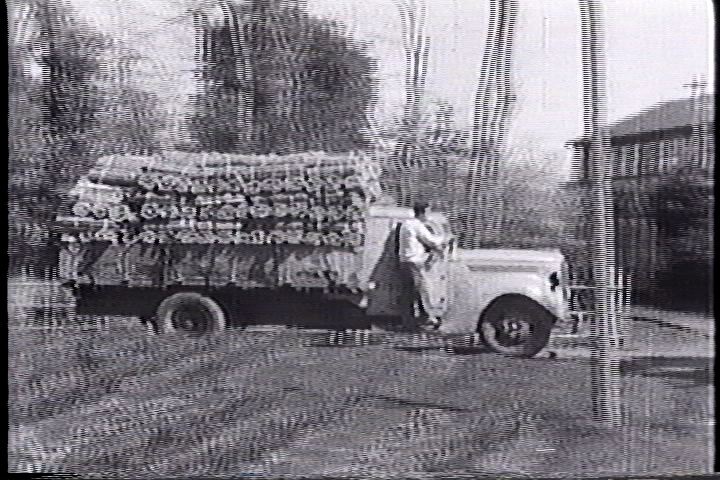

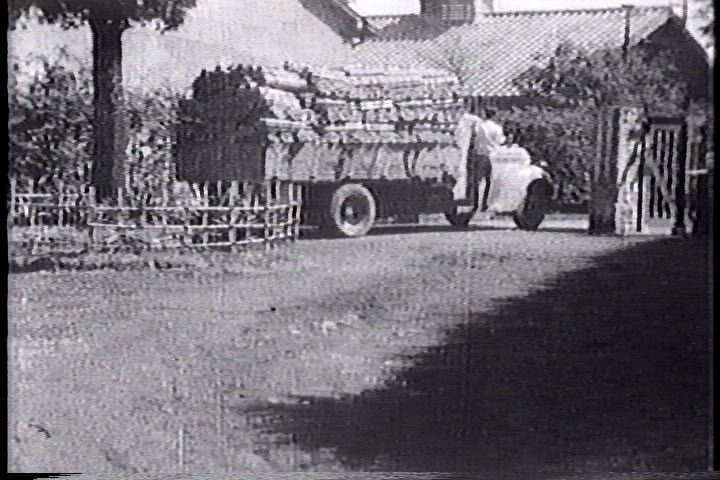

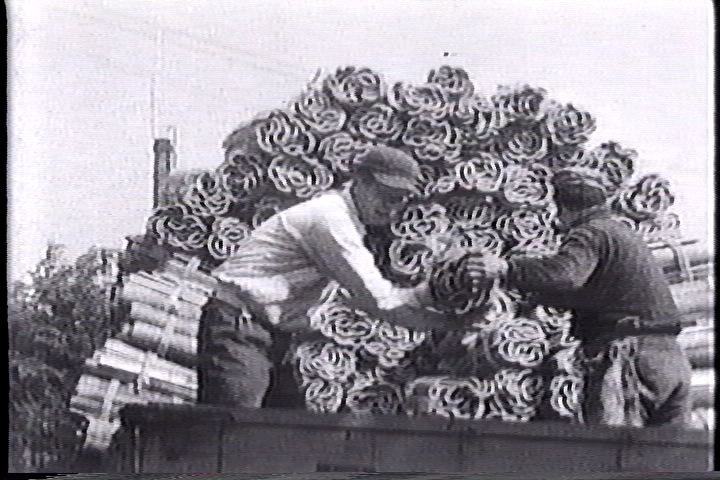

Truck loaded with bamboo
Bamboo entering plant
Unloading a truck load of bamboo

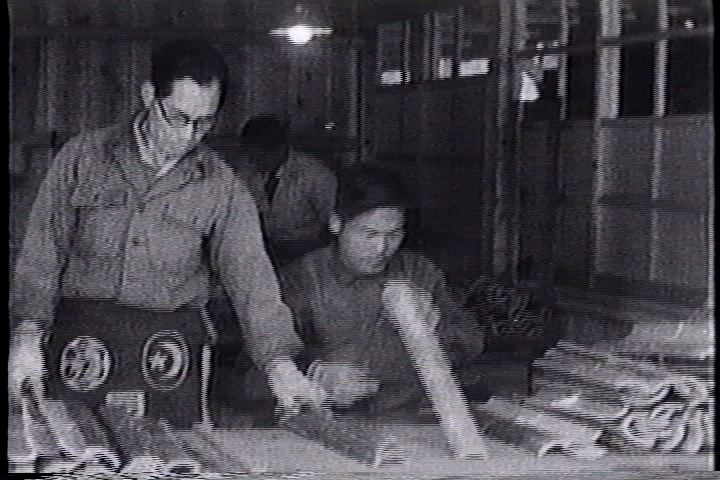

Raw bamboo inspection

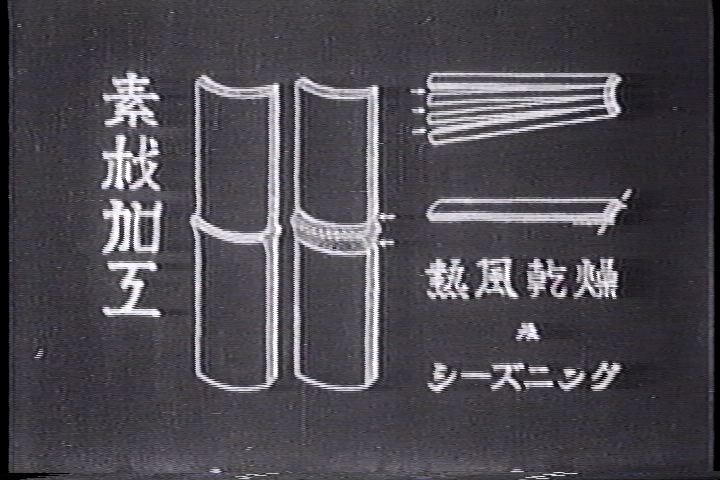

Processing of raw bamboo pieces

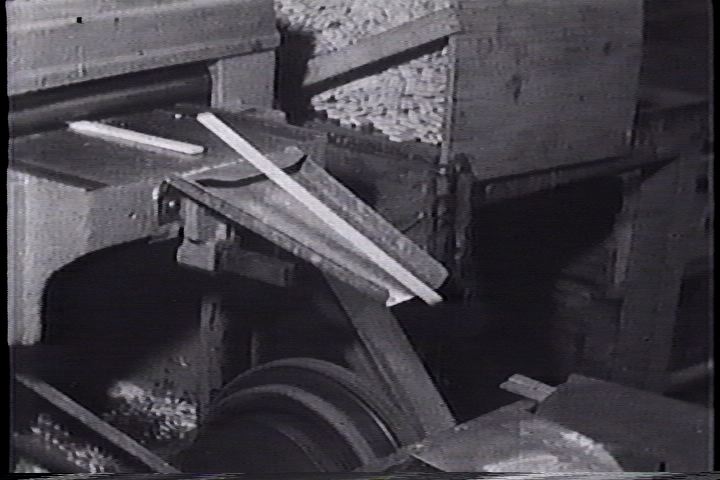

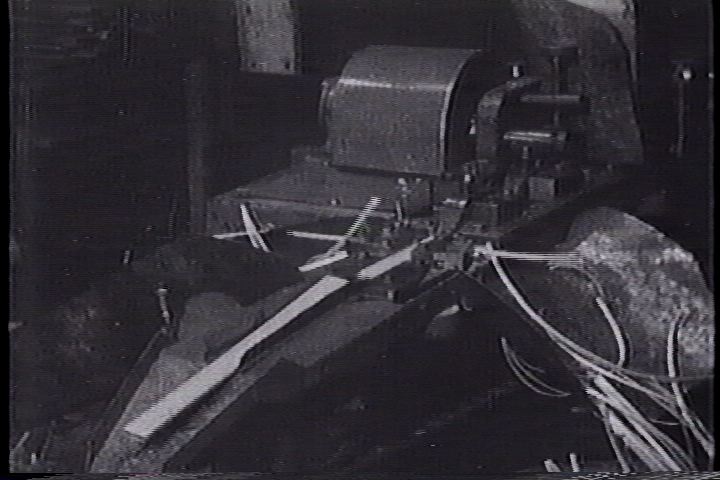

Machine ejecting bamboo strips

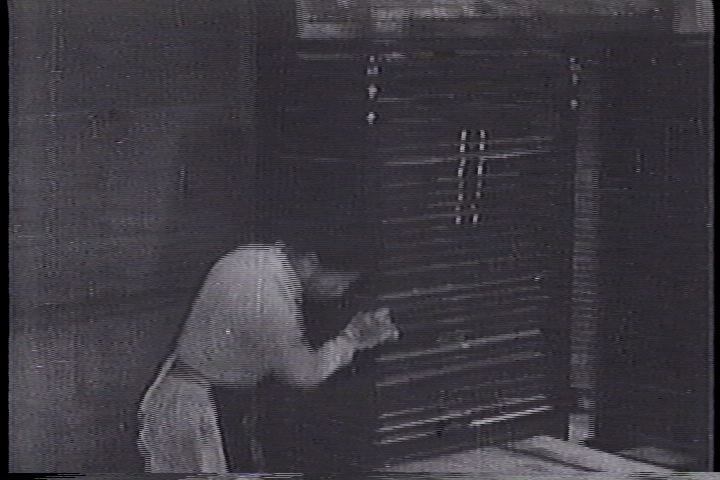

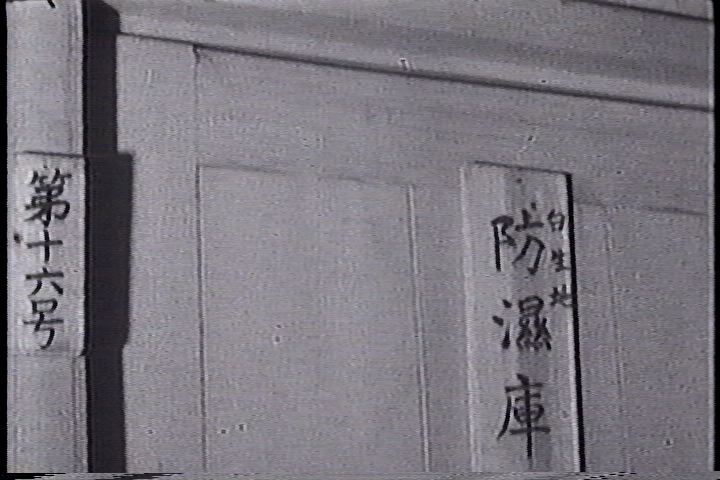

Curing

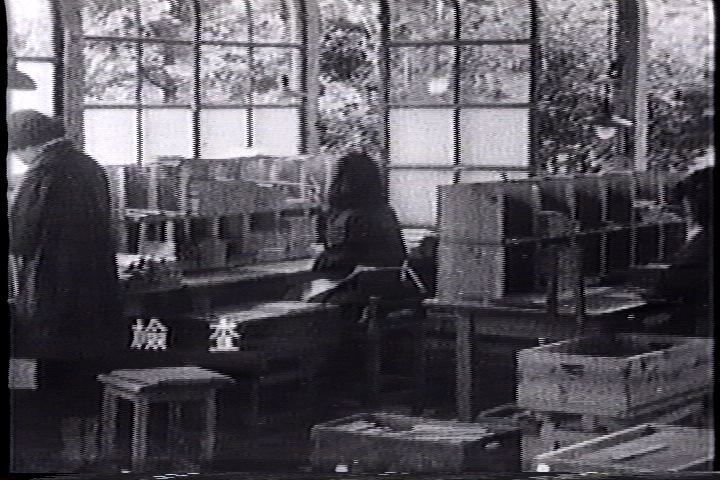

Inspection Department

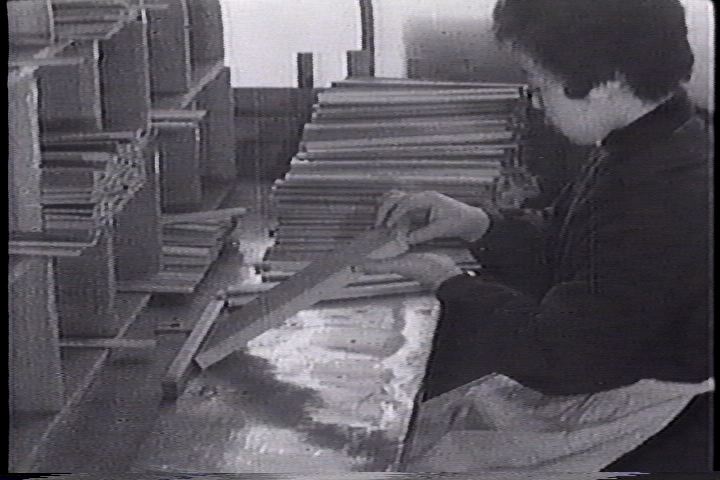

Inspection of blanks

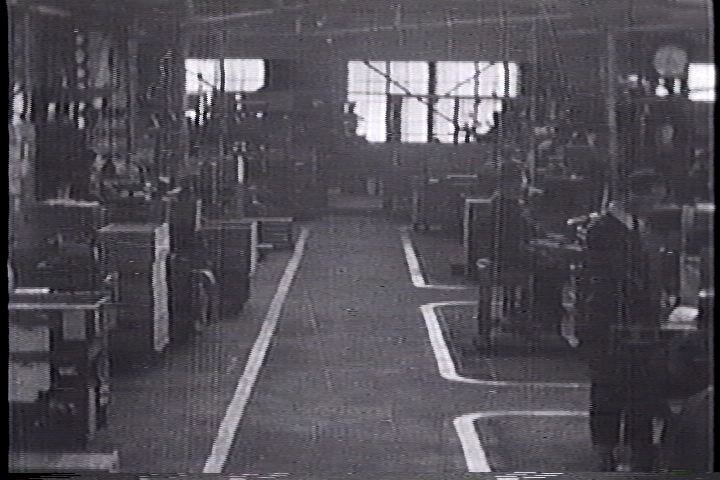

Plant floor

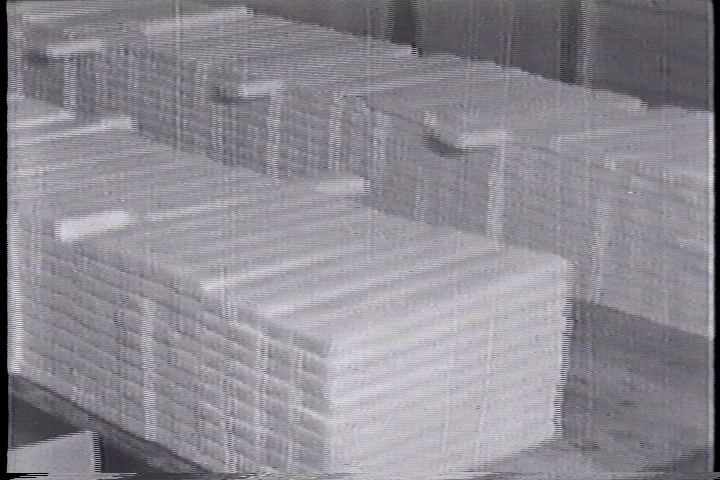

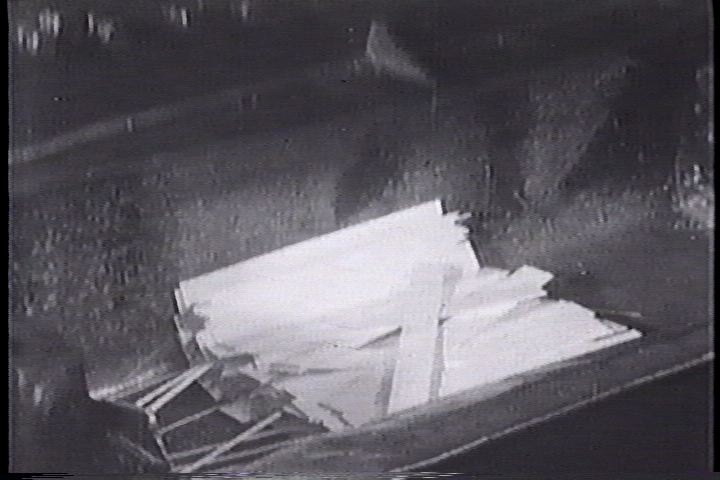

Finished blanks are ejected
Varnishing blanks for simplex slide rules

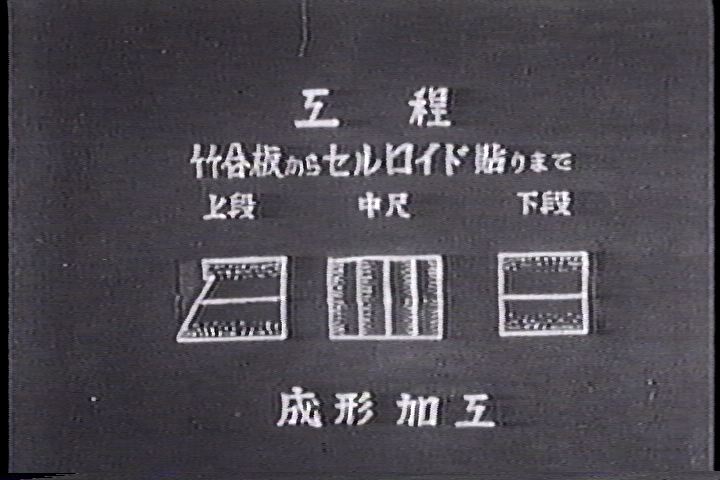

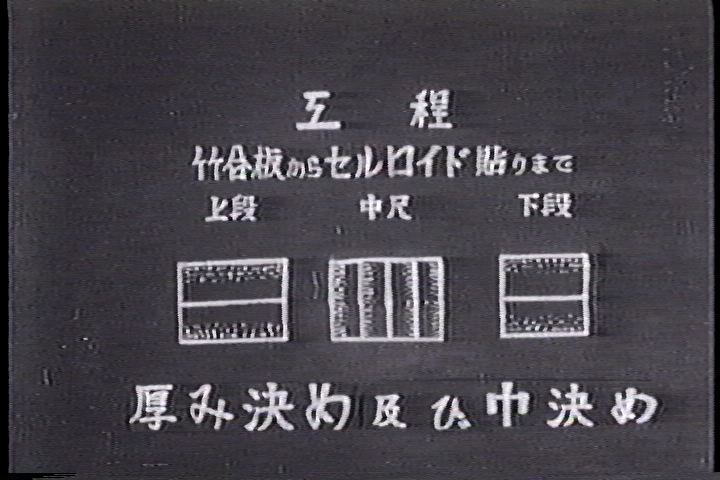

Simplex slide rule manufacturing process (I)
Simplex slide rule manufacturing process (II)

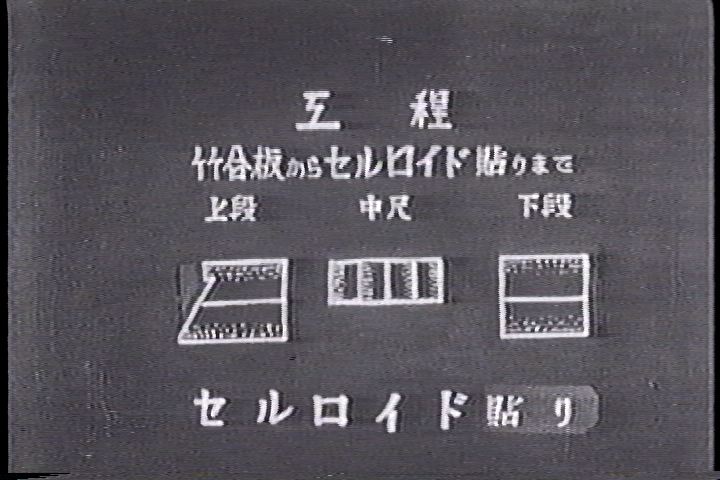

Simplex slide rule manufacturing process (III)

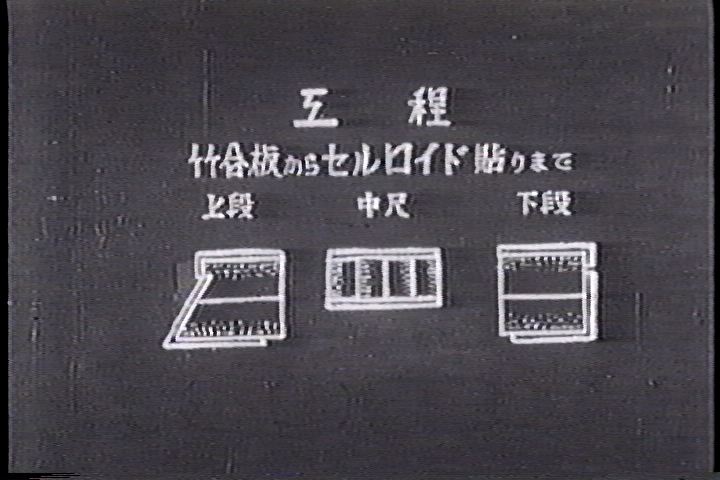

Simplex slide rule manufacturing process (IV)
Simplex slide rule manufacturing process (V)
Simplex slide rule manufacturing process (VI)

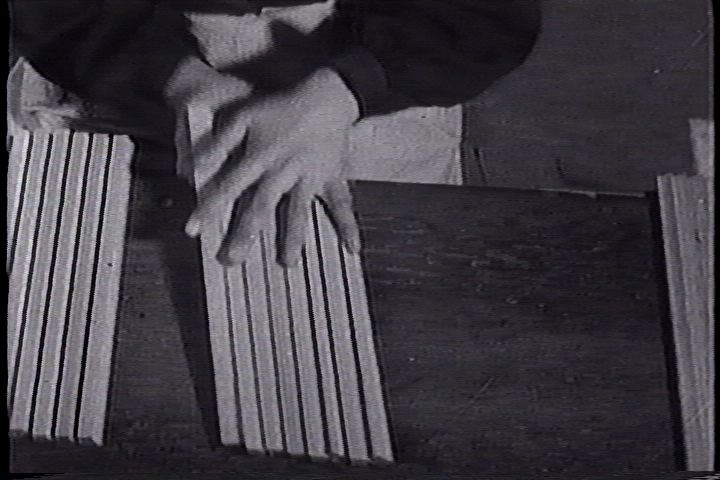

Inspection of blanks for simplex slide rules

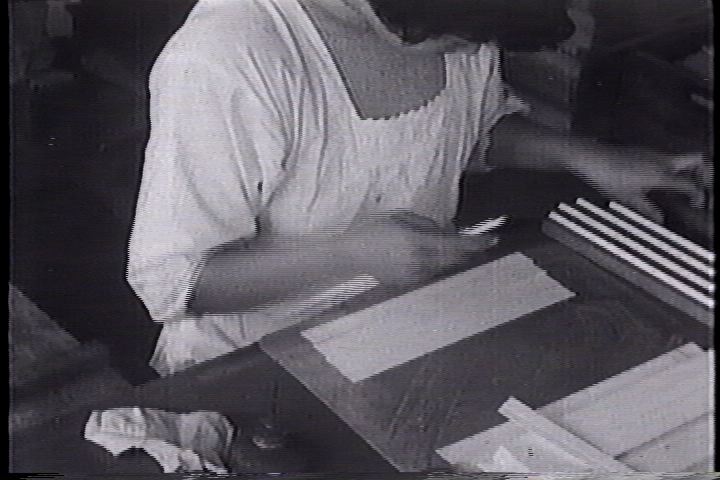

Cutting celluloid sheets
Cut celluloid sheets
Gluing on the celluloid sheets

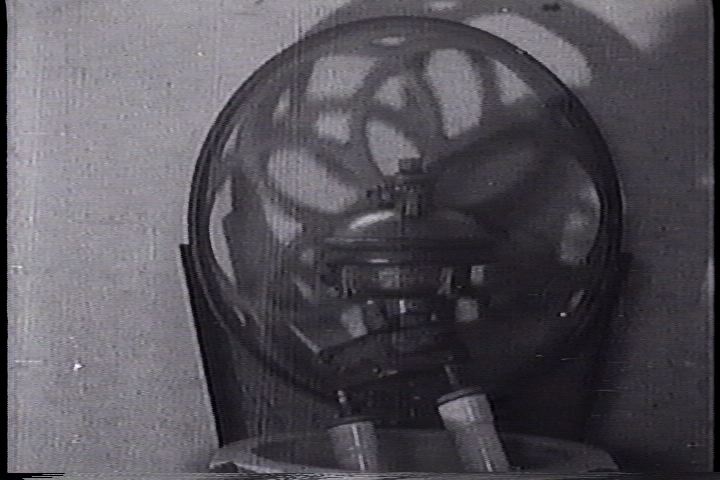

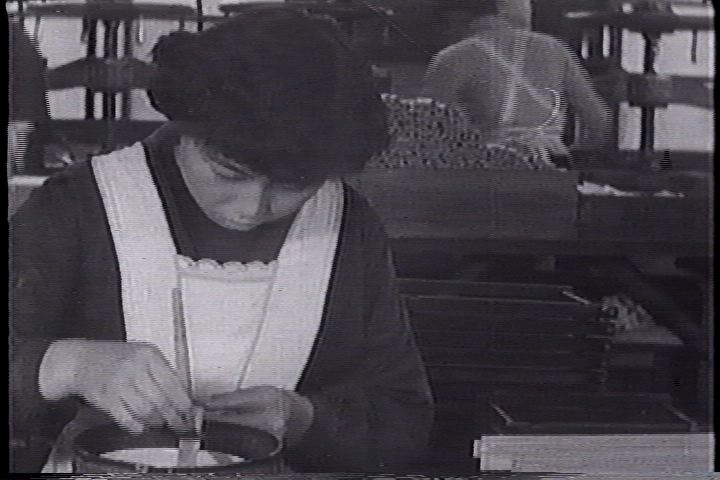

Glue mixer

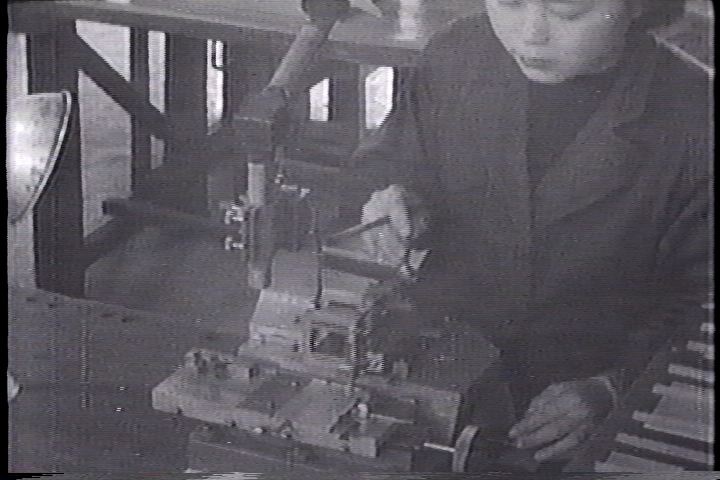

Hairline scribing

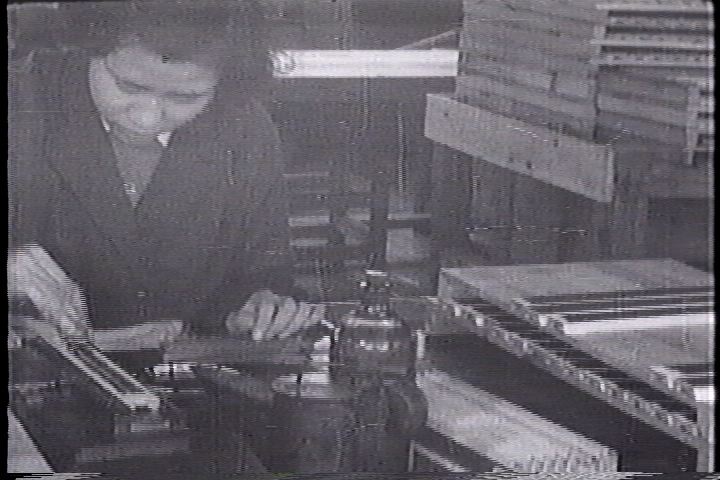

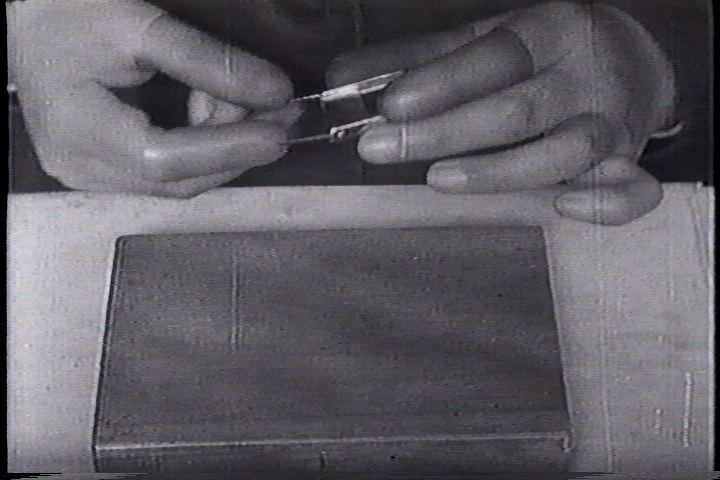

Cursor assembly

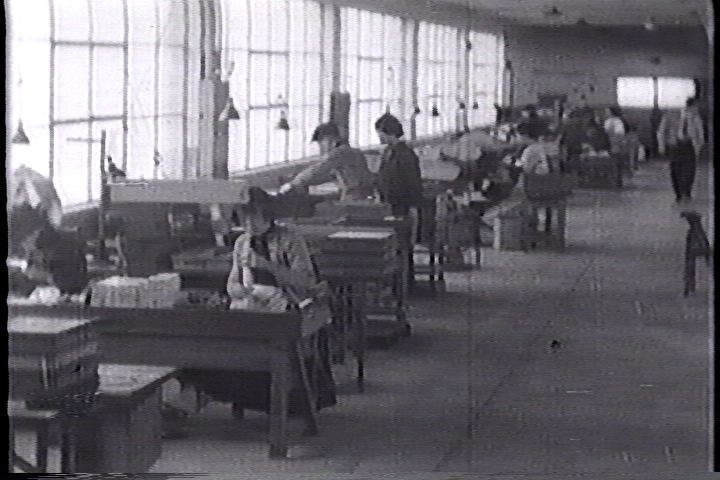

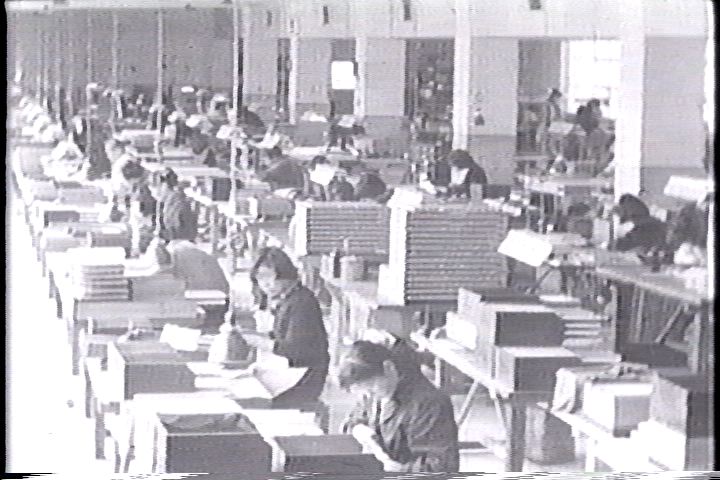

Production floor
Inking
Production floor

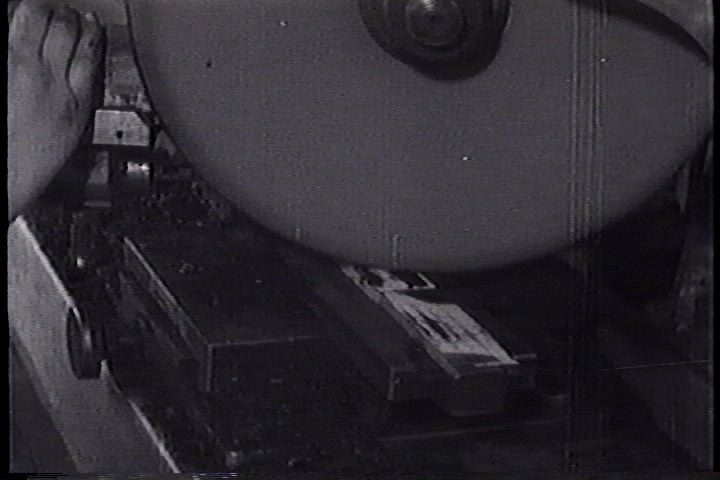

Grinding away excess ink
Final removal of excess ink

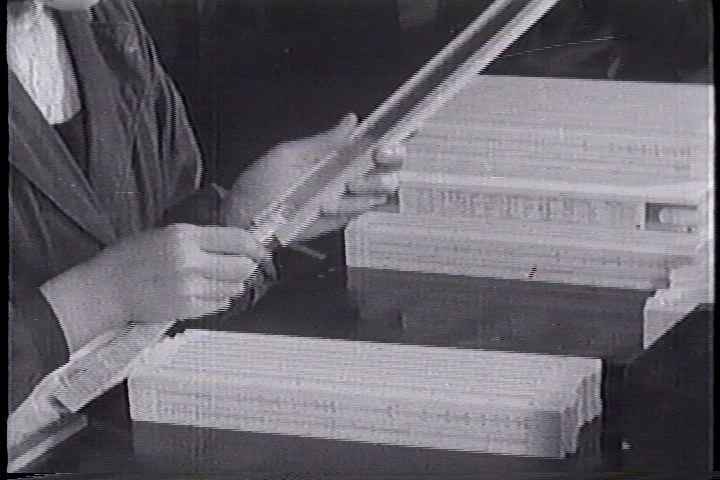

Insertion of conversion factor sheets (these appear to be 2664S slide rules)

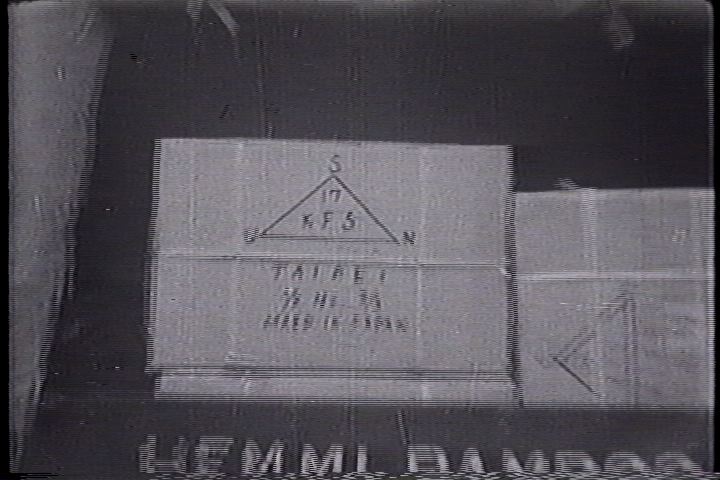

Packaged rules ready for shipping
Slide rules loaded onto a truck

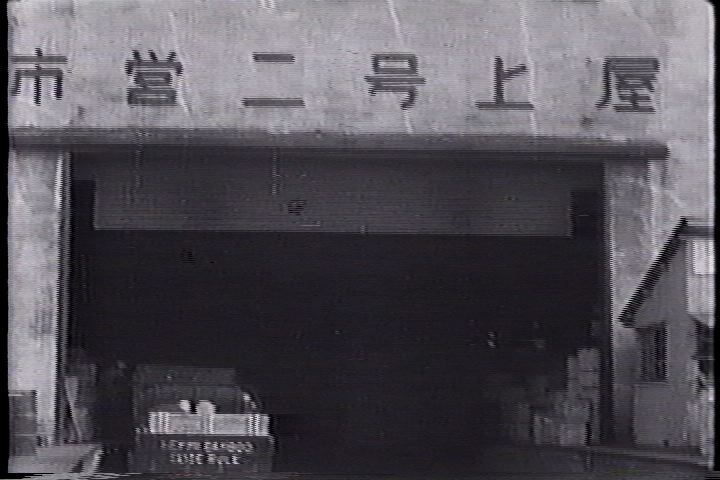

Dock
